UPN (UNP) European Standard U Channels, UPN steel profiles

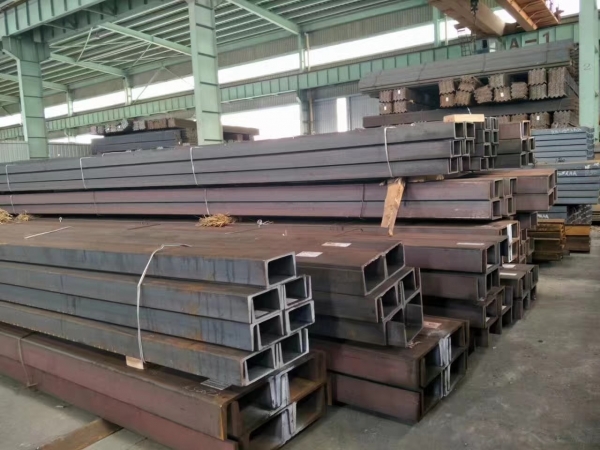

UPN steel channel or UNP steel channel is one of the European standard structurals steel channel section which with tapered flange, UPN channel was known as steel U channel,U channel steel, UPN steel section, U profile and taper flange channel which was manufactured by European quality standard EN 10025 and European standard size tolerance EN 10034 to finish, which is often used to construct structural steel, We offer hot rolled UPN steel channel size range from UPN 50 to UPN 500, the available steel grade: S235JR, S235JO, S235J2, S275JR, S275JO, S275J2, S355JO, S355J2, S355JR, the available length for UPN profile: 6 meters-16 meters or we can cut size to meet your project, we can offer also galvanized UPN channel if you need.
,
|
Specification |
Weight |
H |
B |
TW |
TF |
R1 |
R2 |
d |
|
kg/m |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
UPN 50 |
5,59 |
50 |
38 |
5,0 |
7,0 |
7,0 |
3,5 |
21 |
|
UPN 65 |
7,09 |
65 |
42 |
5,5 |
7,5 |
7,5 |
4,0 |
34 |
|
UPN 80 |
8,64 |
80 |
45 |
6,0 |
8,0 |
8,0 |
4,0 |
47 |
|
UPN 100 |
10,60 |
100 |
50 |
6,0 |
8,5 |
8,5 |
4,5 |
64 |
|
UPN 120 |
13,40 |
120 |
55 |
7,0 |
9,0 |
9,0 |
4,5 |
82 |
|
UPN 140 |
16,00 |
140 |
60 |
7,0 |
10,0 |
10,0 |
5,0 |
98 |
|
UPN 160 |
18,80 |
160 |
65 |
7,5 |
10,5 |
10,5 |
5,5 |
115 |
|
UPN 180 |
22,00 |
180 |
70 |
8,0 |
11,0 |
11,0 |
5,5 |
133 |
|
UPN 200 |
25,30 |
200 |
75 |
8,5 |
11,5 |
11,5 |
6,0 |
151 |
|
UPN 220 |
29,40 |
220 |
80 |
9,0 |
12,5 |
12,5 |
6,5 |
167 |
|
UPN 240 |
33,20 |
240 |
85 |
9,5 |
13,0 |
13,0 |
6,5 |
184 |
|
UPN 260 |
37,90 |
260 |
90 |
10,0 |
14,0 |
14,0 |
7,0 |
200 |
|
UPN 280 |
41,80 |
280 |
95 |
10,0 |
15,0 |
15,0 |
7,5 |
216 |
|
UPN 300 |
46,20 |
300 |
100 |
10,0 |
16,0 |
16,0 |
8,0 |
232 |
|
UPN 320 |
59,50 |
320 |
100 |
14,0 |
17,5 |
17,5 |
8,8 |
246 |
|
UPN 350 |
60,60 |
350 |
100 |
14,0 |
16,0 |
16,0 |
8,0 |
282 |
|
UPN 380 |
63,10 |
380 |
102 |
13,5 |
16,0 |
16,0 |
8,0 |
313 |
|
UPN 400 |
71,80 |
400 |
110 |
14,0 |
18,0 |
18,0 |
9,0 |
324 |
