Steel H Beams with Chinese Standard
Chinese standard hot rolled steel H beam is one of Chinese hot rolled structural steel section which was manufactured by Chinese standard GB706-2008 to finish. Chinese steel H beam is divided into three series according to the size of flange of H beam, which is HW beam, HM beam and HN beams, HW means wide flange beam. HM means middle flange beams, HN beams means narrow flange beam that are widely used in structural steel. We can also offer other hot rolled H beam of other steel grade of with Chinese standard specification, such as JIS G3101 JIS G3106 and KS D 3503 KSD 3515 to manufacture to meet different customers requirement.

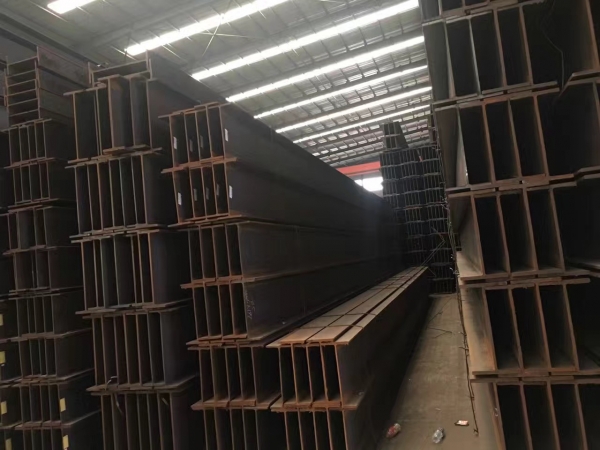

We offer size range of Chinese hot rolled H beam from 100x100 to 1100x400, for Chinese steel H beam, available steel grade as following:Q235B,Q345B,Q345E,SS400,SM490,ASTM A36,ASTM A572 Gr50,S235,S355, Grade 350, available length 12-16 meters, our mill have large Chinese hot rolled steel H beam in our warehouse for sales.
|
Chinese Steel H Beams size |
Weight |
Chinese Steel H Beams size |
Weight |
|
(mm) |
kg/m |
(mm) |
kg/m |
|

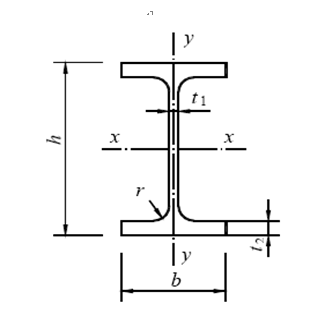

(h×b×t1×t2) |
(h×b×t1×t2) |
||
|
100X50X5X7 |
9.54 |
344X354X16X16 |
131.00 |
|
100X100X6X8 |
17.20 |
400X150X8X13 |
56.80 |
|
125X60X6X8 |
13.30 |
396X199X7X11 |
56.70 |
|
125X125X6.5X9 |
23.80 |
400X200X8X13 |
66.00 |
|
150X75X5X7 |
14.30 |
390X300X10X16 |
107.00 |
|
148X100X6X9 |
21.40 |
386X299X9X14 |
94.30 |
|
150X150X7X10 |
31.90 |
388X402X15X15 |
141.00 |
|
175X90X5X8 |
18.20 |
394X398X11X18 |
147.00 |
|
175X175X7.5X11 |
40.30 |
394X405X18X18 |
168.00 |
|
198X99X4.5X7 |
18.50 |
400X400X13X21 |
172.00 |
|
200X100X5.5X8 |
21.70 |
400X408X21X22 |
197.00 |
|
194X150X6X9 |
31.20 |
414X405X18X28 |
233.00 |
|
200X200X8X12 |
50.50 |
428X407X20X35 |
284.00 |
|
200X204X12X12 |
56.70 |
458X417X30X50 |
415.00 |
|
248X124X5X8 |
25.80 |
498X432X45X70 |
605.00 |
|
250X125X6X9 |
29.70 |
450X150X9X14 |
65.50 |
|
244X175X7X11 |
44.10 |
446X199X8X12 |
66.70 |
|
250X250X9X14 |
72.40 |
450X200X9X14 |
76.50 |
|
250X255X14X14 |
82.20 |
440X300X11X18 |
124.00 |
|
298X149X5.5X8 |
32.60 |
434X299X10X15 |
108.00 |
|
300X150X6.5X9 |
37.30 |
500X150X10X16 |
77.10 |
|
294X200X8X12 |
57.30 |
496X199X9X14 |
79.50 |
|
300X305X15X15 |
106.00 |
500X200X10X16 |
89.60 |
|
300X300X10X15 |
94.50 |
506X201X11X19 |
103.00 |
|
294X302X12X12 |
85.00 |
482X300X11X15 |
116.00 |
|
304X301X11X17 |
106.00 |
488X300X11X18 |
129.00 |
|
346X174X6X9 |
41.80 |
692X300X13X20 |
166.00 |
|
350X175X7X11 |
50.00 |
700X300X13X24 |
185.00 |
|
340X250X9X14 |
79.70 |
792X300X14X22 |
191.00 |
|
336X249X8X12 |
69.20 |
800X300X14X26 |
210.00 |
|
596X199X10X16 |
95.10 |
890X299X15X23 |
213.00 |
|
600X200X11X17 |
106.00 |
900X300X16X28 |
243.00 |
|
606X201X12X20 |
120.00 |
912X302X18X34 |
286.00 |
|
582X300X12X17 |
137.00 |
700X300X13X24 |
182 |
|
588X300X12X20 |
151.00 |
800X300X14X26 |
207 |
|
594X302X14X23 |
175.00 |
900X300X16X28 |
240 |
|
350X350X12X19 |
137.00 |
1000X300X19X36 |
310 |
|
344X348X10X16 |
115.00 |
1100X400X30X50 |
