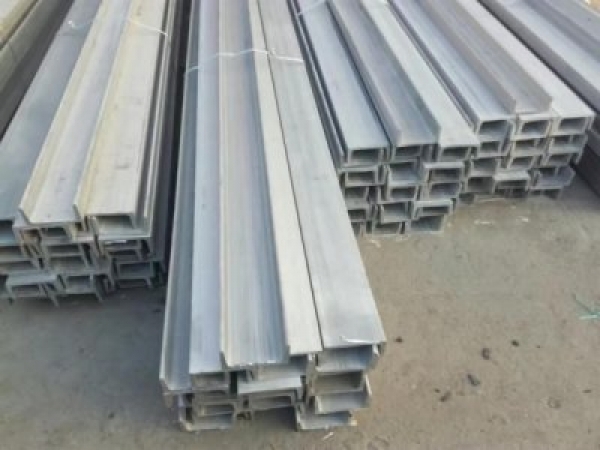

Hot Rolled Stainless Steel U Channel
Stainless steel U channel was known as stainless steel U beam, stainless U channel, and stainless steel U channel bar which was manufactured by hot rolled or SAW techniques to finish, and according to the different stainless steel specifications, the production process is also different, size of less than 16# are finished by hot rolled technology, size of more than 16# are finished by saw technology, for more detail, please see the table below. For hot rolled stainless steel U channel, our factory can offer steel grade as following 304/304L, 316/316L,321, 430, 409L, 443, 439, 441, 444, 436L, 201. Etc. the length can be customized. More details please contact our sales to get.
|
Specification |

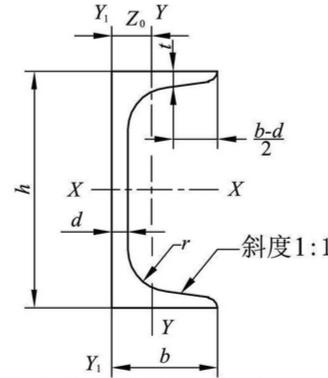

Cross Section Size |
Cross Section Area |
Execution |
|||||
|
h |
b |
d |
t |
r |
r1 |
|||
|
5 |
50 |
37 |
4.5 |
7 |
7 |
3.5 |
6.928 |
hot rolled |
|
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
3.8 |
8.451 |
hot rolled |
|
6.5 |
65 |
40 |
4.3 |
7.5 |
7.5 |
3.8 |
8.547 |
hot rolled |
|
8 |
80 |
43 |
5 |
8 |
8 |
4 |
10.248 |
hot rolled |
|
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
4.2 |
12.748 |
hot rolled |
|
12 |
120 |
53 |
5.5 |
9 |
9 |
4.5 |
15.362 |
hot rolled |
|
12.6 |
126 |
53 |
5.5 |
9 |
9 |
4.5 |
15.692 |
hot rolled |
|
14a |
140 |
58 |
6 |
9.5 |
9.5 |
4.8 |
18.516 |
hot rolled |
|
14b |
140 |
60 |
8 |
9.5 |
9.5 |
4.8 |
21.316 |
hot rolled |
|
16a |
160 |
63 |
6.5 |
10 |
10 |
5 |
21.962 |
hot rolled |
|
16b |
160 |
65 |
8.5 |
10 |
10 |
5 |
25.162 |
hot rolled |
|
18a |
180 |
68 |
7 |
10.5 |
10.5 |
5.2 |
25.699 |
SAW |
|
18b |
180 |
70 |
9 |
10.5 |
10.5 |
5.2 |
29.299 |
SAW |
|
20a |
200 |
73 |
7 |
11 |
11 |
5.5 |
28.837 |
SAW |
|
20b |
200 |
75 |
9 |
11 |
11 |
5.5 |
32.837 |
SAW |
|
22a |
220 |
77 |
7 |
11.5 |
11.5 |
5.8 |
31.846 |
SAW |
|
22b |
220 |
79 |
9 |
11.5 |
11.5 |
5.8 |
36.246 |
SAW |
|
24a |
240 |
78 |
7 |
12 |
12 |
6 |
34.217 |
SAW |
|
24b |
240 |
80 |
9 |
12 |
12 |
6 |
39.017 |
SAW |
|
24c |
240 |
82 |
11 |
12 |
12 |
6 |
43.817 |
SAW |
|
25a |
250 |
78 |
7 |
12 |
12 |
6 |
34.917 |
SAW |
|
25b |
250 |
80 |
9 |
12 |
12 |
6 |
39.917 |
SAW |
|
25c |
250 |
82 |
11 |
12 |
12 |
6 |
44.917 |
SAW |
|
27a |
270 |
82 |
7.5 |
12.5 |
12.5 |
6.2 |
39.284 |
SAW |
|
27b |
270 |
84 |
9.5 |
12.5 |
12.5 |
6.2 |
44.684 |
SAW |
|
27c |
270 |
86 |
11.5 |
12.5 |
12.5 |
6.2 |
50.084 |
SAW |
|
28a |
280 |
82 |
7.5 |
12.5 |
12.5 |
6.2 |
40.034 |
SAW |
|
28b |
280 |
84 |
9.5 |
12.5 |
12.5 |
6.2 |
45.634 |
SAW |
|
28c |
280 |
86 |
11.5 |
12.5 |
12.5 |
6.2 |
51.234 |
SAW |
|
30a |
300 |
85 |
7.5 |
13.5 |
13.5 |
6.8 |
43.902 |
SAW |
|
30b |
300 |
87 |
9.5 |
13.5 |
13.5 |
6.8 |
49.902 |
SAW |
|
30c |
300 |
89 |
11.5 |
13.5 |
13.5 |
6.8 |
55.902 |
SAW |
|
32a |
320 |
88 |
8 |
14 |
14 |
7 |
48.513 |
SAW |
|
32b |
320 |
90 |
10 |
14 |
14 |
7 |
54.913 |
SAW |
|
32c |
320 |
92 |
12 |
14 |
14 |
7 |
61.313 |
SAW |
|
36a |
360 |
96 |
9 |
16 |
16 |
8 |
60.91 |
SAW |
|
36b |
360 |
98 |
11 |
16 |
16 |
8 |
68.11 |
SAW |
|
36c |
360 |
100 |
13 |
16 |
16 |
8 |
75.31 |
SAW |
|
40a |
400 |
100 |
10.5 |
18 |
18 |
9 |
75.068 |
SAW |
|
40b |
400 |
102 |
12.5 |
18 |
18 |
9 |
83.068 |
SAW |
|
40c |
400 |
104 |
14.5 |
18 |
18 |
9 |
91.068 |
SAW |
