Stainless Steel Universal Beam

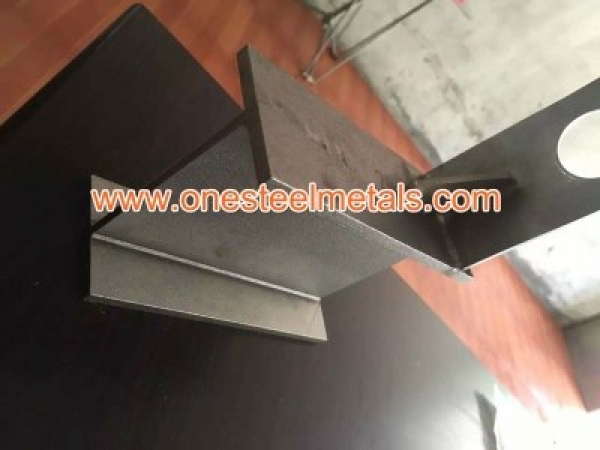

British stainless steel universal beam belongs to British specification, it is one of stainless steel structural section, in general, was called stainless steel “I” beam, it is named after the ‘I’ shaped appearance of their cross-section, which was manufactured by extruded, hot rolled or laser-fused to finished, stainless steel British universal beam of laser-fused was produced by stainless steel plate of fixed width, length and thickness using laser welding machine to be finished. It is widely used in industrial and civil buildings, steel structures, and supports for industrial buildings. ship, machinery manufacturing, engineering steel piles, etc. British stainless steel universal beam have a dull gray, mill finish. All specification was copied from carbon steel, If you have special needs for your project, contact our sales, we can process according to your demand or drawing.
OneSteel Metal offers 304/304L and 316/316L or duplex 2205 British stainless steel universal beam.
|
Specification |
h |
b |
tw |
tf |
Execution |
|
mm |
mm |
mm |
mm |
||
|
UB 152 x 89 |
152.4 |
88.7 |
4.5 |
7.7 |
Laser-Fused |
|
UB 178 x 102 |
177.8 |
101.2 |
4.8 |
7.9 |
Laser-Fused |
|
UB 203 x 102 |
203.2 |
101.8 |
5.4 |
9.3 |
Laser-Fused |
|
UB 203 x 133 |
203.2 |
133.2 |
5.7 |
7.8 |
Laser-Fused |
|
UB 203 x 133 |
206.8 |
133.9 |
6.4 |
9.6 |
Laser-Fused |
|
UB 254 x 102 |
254 |
101.6 |
5.7 |
6.8 |
Laser-Fused |
|
UB 254 x 102 |
257.2 |
101.9 |
6 |
8.4 |
Laser-Fused |
|
UB 254 x 102 |
260.4 |
102.2 |
6.3 |
10 |
Laser-Fused |
|
UB 254 x 146 |
251.4 |
146.1 |
6 |
8.6 |
Laser-Fused |
|
UB 254 x 146 |
256 |
146.4 |
6.3 |
10.9 |
Laser-Fused |
|
UB 254 x 146 |
259.6 |
147.3 |
7.2 |
12.7 |
Laser-Fused |
|
UB 305 x 102 |
305.1 |
101.6 |
5.8 |
7 |
Laser-Fused |
|
UB 305 x 102 |
308.7 |
101.8 |
6 |
8.8 |
Laser-Fused |
|
UB 305 x 102 |
312.7 |
102.4 |
6.6 |
10.8 |
Laser-Fused |
|
UB 305 x 165 |
303.4 |
165 |
6 |
10.2 |
Laser-Fused |
|
UB 305 x 165 |
306.6 |
165.7 |
6.7 |
11.8 |
Laser-Fused |
|
UB 305 x 165 |
310.4 |
166.9 |
7.9 |
13.7 |
Laser-Fused |
|
UB 356 x 127 |
349 |
125.4 |
6 |
8.5 |
Laser-Fused |
|
UB 356 x 127 |
353.4 |
126 |
6.6 |
10.7 |
Laser-Fused |
|
UB 356 x 171 |
351.4 |
171.1 |
7 |
9.7 |
Laser-Fused |
|
UB 356 x 171 |
355 |
171.5 |
7.4 |
11.5 |
Laser-Fused |
|
UB 356 x 171 |
358 |
172.2 |
8.1 |
13 |
Laser-Fused |
|
UB 356 x 171 |
363.4 |
173.2 |
9.1 |
15.7 |
Laser-Fused |
|
UB 406 x 140 |
398 |
141.8 |
6.4 |
8.6 |
Laser-Fused |
|
UB 406 x 140 |
403.2 |
142.2 |
6.8 |
11.2 |
Laser-Fused |
|
UB 406 x 178 |
402.6 |
177.7 |
7.7 |
10.9 |
Laser-Fused |
|
UB 406 x 178 |
406.4 |
177.9 |
7.9 |
12.8 |
Laser-Fused |
|
UB 406 x 178 |
409.4 |
178.8 |
8.8 |
14.3 |
Laser-Fused |
|
UB 406 x 178 |
412.8 |
179.5 |
9.5 |
16 |
Laser-Fused |
|
UB 457 x 152 |
449.8 |
152.4 |
7.6 |
10.9 |
Laser-Fused |
|
UB 457 x 152 |
454.6 |
152.9 |
8.1 |
13.3 |
Laser-Fused |
|
UB 457 x 152 |
458 |
153.8 |
9 |
15 |
Laser-Fused |
|
UB 457 x 152 |
462 |
154.4 |
9.6 |
17 |
Laser-Fused |
|
UB 457 x 152 |
465.8 |
155.3 |
10.5 |
18.9 |
Laser-Fused |
|
UB 457 x 191 |
453.4 |
189.9 |
8.5 |
12.7 |
Laser-Fused |
|
UB 457 x 191 |
457 |
190.4 |
9 |
14.5 |
Laser-Fused |
|
UB 457 x 191 |
460 |
191.3 |
9.9 |
16 |
Laser-Fused |
|
UB 457 x 191 |
463.4 |
191.9 |
10.5 |
17.7 |
Laser-Fused |
|
UB 457 x 191 |
467.2 |
192.8 |
11.4 |
19.6 |
Laser-Fused |
|
UB 533 x 210 |
528.3 |
208.8 |
9.6 |
13.2 |
Laser-Fused |
|
UB 533 x 210 |
533.1 |
209.3 |
10.1 |
15.6 |
Laser-Fused |
|
UB 533 x 210 |
536.7 |
210 |
10.8 |
17.4 |
Laser-Fused |
|
UB 533 x 210 |
539.5 |
210.8 |
11.6 |
18.8 |
Laser-Fused |
|
UB 533 x 210 |
544.5 |
211.9 |
12.7 |
21.3 |
Laser-Fused |
|
UB 610 x 229 |
602.6 |
227.6 |
10.5 |
14.8 |
Laser-Fused |
|
UB 610 x 229 |
607.6 |
228.2 |
11.1 |
17.3 |
Laser-Fused |
|
UB 610 x 229 |
612.2 |
229 |
11.9 |
19.6 |
Laser-Fused |
|
UB 610 x 229 |
617.2 |
230.2 |
13.1 |
22.1 |
Laser-Fused |
|
UB 610 x 305 |
612.4 |
304.8 |
11.8 |
19.7 |
Laser-Fused |
|
UB 610 x 305 |
620.2 |
307.1 |
14.1 |
23.6 |
Laser-Fused |
|
UB 610 x 305 |
635.8 |
311.4 |
18.4 |
31.4 |
Laser-Fused |
|
UB 686 x 254 |
677.9 |
253 |
11.7 |
16.2 |
Laser-Fused |
|
UB 686 x 254 |
683.5 |
253.7 |
12.4 |
19 |
Laser-Fused |
|
UB 686 x 254 |
687.5 |
254.5 |
13.2 |
21 |
Laser-Fused |
|
UB 686 x 254 |
692.9 |
255.8 |
14.5 |
23.7 |
Laser-Fused |
|
UB 762 x 267 |
754 |
265.2 |
12.8 |
17.5 |
Laser-Fused |
|
UB 762 x 267 |
762.2 |
266.7 |
14.3 |
21.6 |
Laser-Fused |
|
UB 762 x 267 |
769.8 |
268 |
15.6 |
25.4 |
Laser-Fused |
|
UB 838 x 292 |
834.9 |
291.7 |
14 |
18.8 |
Laser-Fused |
|
UB 838 x 292 |
840.7 |
292.4 |
14.7 |
21.7 |
Laser-Fused |
|
UB 838 x 292 |
850.9 |
293.8 |
16.1 |
26.8 |
Laser-Fused |
|
UB 914 x 305 |
903 |
303.3 |
15.1 |
20.2 |
Laser-Fused |
|
UB 914 x 305 |
910.4 |
304.1 |
15.9 |
23.9 |
Laser-Fused |
|
UB 914 x 305 |
918.4 |
305.5 |
17.3 |
27.9 |
Laser-Fused |
|
UB 914 x 305 |
926.6 |
307.7 |
19.5 |
32 |
Laser-Fused |
|
UB 914 x 419 |
911.8 |
418.5 |
19.4 |
32 |
Laser-Fused |
|
UB 914 x 419 |
921 |
420.5 |
21.4 |
36.6 |
Laser-Fused |
