Stainless Steel UPN Channel

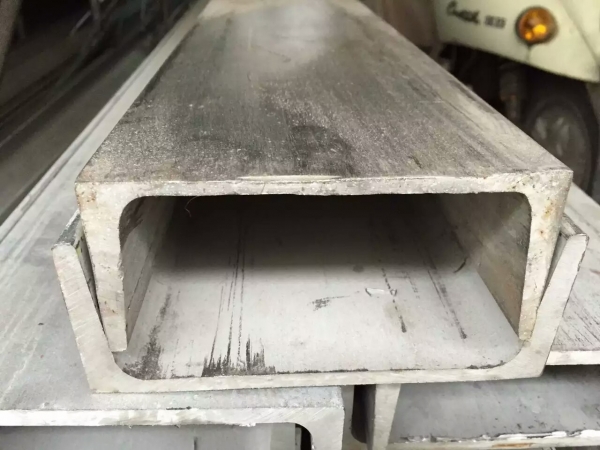

Stainless Steel UPN Channels is one of stainless steel U shape section, so also was known stainless steel U section, was known as stainless “U” channels and stainless steel channel UPN.Stainless steel UPN channel was manufactured by extruded, hot rolled or laser-fused to finished. Stainless Steel UPE Channels of laser-fused was produced by stainless steel plate of fixed width, length and thickness using Laser welding machine to be finished. So also was called hot rolled stainless steel UPN channel and welded stainless steel UPN channel, It is widely used in industrial and civil buildings, steel structures, and supports for industrial buildings. Ships, machinery manufacturing, engineering steel piles, etc. stainless steel UPN Channels - have a dull gray, mill finish. All specification was copied from carbon steel, If you have special needs for your project, contact our sales, we can process according to your demand or drawing.

OneSteel Metal offers 304/304L and 316/316L or duplex 2205 Stainless Steel UPN Channels or custom stainless steel channel

Designation	Dimensions				Execution
	h	b	tw	tf
	mm	mm	mm	mm
UPN 80	80	45	6	8	laser-fused or hot rolled
UPN 100	100	50	6	8.5	laser-fused or hot rolled
UPN 120	120	55	7	9	laser-fused or hot rolled
UPN 140	140	60	7	10	laser-fused or hot rolled
UPN 160	160	65	7.5	10.5	laser-fused or hot rolled
UPN 180	180	70	8	11	laser-fused or hot rolled
UPN 200	200	75	8.5	11.5	laser-fused
UPN 220	220	80	9	12.5	laser-fused
UPN 240	240	85	9.5	13	laser-fused
UPN 260	260	90	10	14	laser-fused
UPN 280	280	95	10	15	laser-fused
UPN 300	300	100	10	16	laser-fused
UPN 320	320	100	14	17.5	laser-fused
UPN 350	350	100	14	16	laser-fused
UPN 380	380	102	13.5	16	laser-fused
UPN 400	400	110	14	18	laser-fused
