Stainless Steel Wide Flange Beam

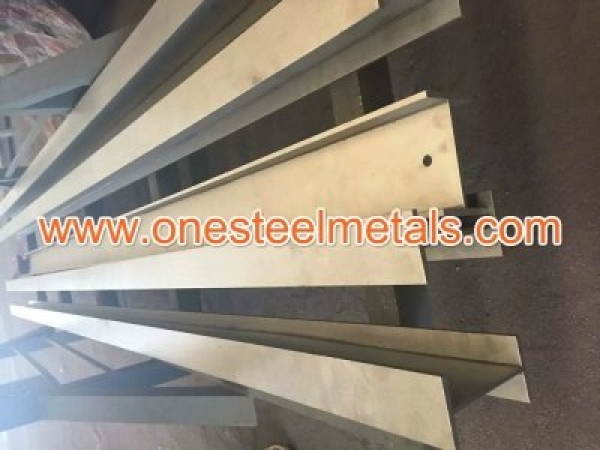

Stainless steel wide flange beam was known as stainless steel "I" beam, stainless steel "H" beam, wide flange stainless steel beam, wide flange beam in stainless steel and stainless steel W beam, which was manufactured by extruding, hot rolled or laser fused or SAW to finished.Stainless steel wide flange beam was produced by stainless steel plate of fixed width, length, and thickness using laser fused welding machine to be finished. It is widely used in industrial and civil buildings, structural steel, and supports for industrial buildings. Ships, machinery manufacturing, engineering steel piles, etc. stainless steel wide flange beam have a dull gray finish and mill finish or custom, All dimensions of stainless steel wide flange beam was copied from carbon steel, If you have special specification needs for your project, contact our sales, we can custom your dimensions according to your demand or drawing, for stainless steel wide flange beam, which can be available to steel grade 304/304L, 316/316L or duplex 2205.

Stainless Steel Wide Flange Beam W Beam drawing

Specfication Feet	Metric Reference	Depth of Section	Width of Section	Web Thickness	Flange Thickness	Execution
		d	b	tw	tf
		mm	mm	mm	mm
W4x13	W100x19.3	106	103	7.11	8.76	laser-fused or SAW:
W5x19	W130x28.1	131	128	6.86	10.9	laser-fused or SAW:
W6x25	W150x37.1	162	154	8.13	11.6	laser-fused or SAW:
W6x20	W150x29.8	157	153	6.6	9.27	laser-fused or SAW:
W 6x25	W 150x37.1	162	154	8.13	11.6	laser-fused or SAW:
W6x15	W150x22.5	152	152	5.84	6.6	laser-fused or SAW:
W6x12	W150x18	153	102	5.84	7.11	laser-fused or SAW:
W6x9	W150x13.5	150	100	4.32	5.46	laser-fused or SAW:
W6x8.5	W150x13	148	100	4.32	4.95	laser-fused or SAW:
W8x67	W200x100	229	210	14.5	23.7	laser-fused or SAW:
W8x58	W200x86	222	209	13	20.6	laser-fused or SAW:
W8x48	W200x71	216	206	10.2	17.4	laser-fused or SAW:
W8x40	W200x59	210	205	9.14	14.2	laser-fused or SAW:
W8x35	W200x52	206	204	7.87	12.6	laser-fused or SAW:
W8x31	W200x46.1	203	203	7.24	11	laser-fused or SAW:
W8x28	W200x41.7	205	166	7.24	11.8	laser-fused or SAW:
W8x24	W200x35.9	201	165	6.22	10.2	laser-fused or SAW:
W8x21	W200x31.3	210	134	6.35	10.2	laser-fused or SAW:
W8x18	W200x26.6	207	133	5.84	8.38	laser-fused or SAW:
W8x15	W200x22.5	206	102	6.22	8	laser-fused or SAW:
W8x13	W200x19.3	203	102	5.84	6.48	laser-fused or SAW:
W8x10	W200x15	200	100	4.32	5.21	laser-fused or SAW:
W 10x112	W 250x167	290	264	19.2	31.8	laser-fused or SAW:
W 10x100	W 250x149	282	262	17.3	28.4	laser-fused or SAW:
W 10x88	W 250x131	274	262	15.4	25.1	laser-fused or SAW:
W10x77	W250x115	269	259	13.5	22.1	laser-fused or SAW:
W10x68	W250x101	264	257	11.9	19.6	laser-fused or SAW:
W 10x60	W 250x89	259	257	10.7	17.3	laser-fused or SAW:
W10x54	W250x80	257	254	9.4	15.6	laser-fused or SAW:
W10x49	W250x73	254	254	8.64	14.2	laser-fused or SAW:
W10x45	W250x67	257	204	8.89	15.7	laser-fused or SAW:
W10x39	W250x58	252	203	8	13.5	laser-fused or SAW:
W10x33	W250x49.1	247	202	7.37	11	laser-fused or SAW:
W10x30	W250x44.8	267	148	7.62	13	laser-fused or SAW:
W10x26	W250x38.5	262	147	6.6	11.2	laser-fused or SAW:
W10x22	W250x32.7	259	146	6.1	9.14	laser-fused or SAW:
W10x19	W250x28.4	259	102	6.35	10	laser-fused or SAW:
W10x17	W250x25.3	257	102	6.1	8.38	laser-fused or SAW:
W10x15	W250x22.3	254	102	5.84	6.86	laser-fused or SAW:
W10x12	W250x17.9	251	101	4.83	5.33	laser-fused or SAW:
W 12x170	W 310x253	356	320	24.4	39.6	laser-fused or SAW:
W 12x152	W 310x226	348	318	22.1	35.6	laser-fused or SAW:
W 12x136	W 310x202	340	315	20.1	31.8	laser-fused or SAW:
W 12x120	W 310x179	333	312	18	28.2	laser-fused or SAW:
W12x106	W310x158	328	310	15.5	25.1	laser-fused or SAW:
W 12x96	W 310x143	323	310	14	22.9	laser-fused or SAW:
W 12x87	W 310x129	318	307	13.1	20.6	laser-fused or SAW:
W12x79	W310x117	315	307	11.9	18.7	laser-fused or SAW:
W12x72	W310x107	312	305	10.9	17	laser-fused or SAW:
W12x65	W310x97	307	305	9.91	15.4	laser-fused or SAW:
W12x58	W310x86	310	254	9.14	16.3	laser-fused or SAW:
W12x53	W310x79	307	254	8.76	14.6	laser-fused or SAW:
W12x50	W310x74	310	205	9.4	16.3	laser-fused or SAW:
W12x45	W310x67	307	204	8.51	14.6	laser-fused or SAW:
W12x40	W310x60	302	203	7.49	13.1	laser-fused or SAW:
W12x35	W310x52	318	167	7.62	13.2	laser-fused or SAW:
W12x30	W310x44.5	312	166	6.6	11.2	laser-fused or SAW:
W12x26	W310x38.7	310	165	5.84	9.65	laser-fused or SAW:
W12x22	W310x32.7	312	102	6.6	10.8	laser-fused or SAW:
W12x19	W310x28.3	310	102	5.97	8.89	laser-fused or SAW:
W12x16	W310x23.8	305	101	5.59	6.73	laser-fused or SAW:
W12x14	W310x21	302	101	5.08	5.72	laser-fused or SAW:
W 14x233	W 360x347	406	404	27.2	43.7	laser-fused or SAW:
W 14x211	W 360x314	399	401	24.9	39.6	laser-fused or SAW:
W 14x193	W 360x287	394	399	22.6	36.6	laser-fused or SAW:
W 14x176	W 360x262	386	399	21.1	33.3	laser-fused or SAW:
W 14x159	W 360x237	381	396	18.9	30.2	laser-fused or SAW:
W 14x145	W 360x216	376	394	17.3	27.7	laser-fused or SAW:
W14x132	W360x196	373	373	16.4	26.2	laser-fused or SAW:
W14x120	W360x179	368	373	15	23.9	laser-fused or SAW:
W14x109	W360x162	363	371	13.3	21.8	laser-fused or SAW:
W14x99	W360x147	361	371	12.3	19.8	laser-fused or SAW:
W14x90	W360x134	356	368	11.2	18	laser-fused or SAW:
W14x82	W360x122	363	257	13	21.7	laser-fused or SAW:
W14x74	W360x110	361	257	11.4	19.9	laser-fused or SAW:
W14x68	W360x101	356	254	10.5	18.3	laser-fused or SAW:
W14x61	W360x91	353	254	9.53	16.4	laser-fused or SAW:
W14x53	W360x79	353	205	9.4	16.8	laser-fused or SAW:
W14x48	W360x72	351	204	8.64	15.1	laser-fused or SAW:
W14x43	W360x64	348	203	7.75	13.5	laser-fused or SAW:
W14x38	W360x57.8	358	172	7.87	13.1	laser-fused or SAW:
W14x34	W360x51	356	171	7.24	11.6	laser-fused or SAW:
W14x30	W360x44	351	171	6.86	9.78	laser-fused or SAW:
W14x26	W360x39	353	128	6.48	10.7	laser-fused or SAW:
W14x22	W360x32.9	348	127	5.84	8.51	laser-fused or SAW:
W16x100	W410x149	432	264	14.9	25	laser-fused or SAW:
W16x89	W410x132	427	264	13.3	22.2	laser-fused or SAW:
W16x77	W410x114	419	262	11.6	19.3	laser-fused or SAW:
W16x67	W410x100	414	259	10	16.9	laser-fused or SAW:
W16x57	W410x85	417	181	10.9	18.2	laser-fused or SAW:
W16x50	W410x75	414	180	9.65	16	laser-fused or SAW:
W16x45	W410x67	409	179	8.76	14.4	laser-fused or SAW:
W16x40	W410x60	406	178	7.75	12.8	laser-fused or SAW:
W16x36	W410x53	404	178	7.49	10.9	laser-fused or SAW:
W16x31	W410x46.1	404	140	6.99	11.2	laser-fused or SAW:
W16x26	W410x38.8	399	140	6.35	8.76	laser-fused or SAW:
W 18x175	W 460x260	508	290	22.6	40.4	laser-fused or SAW:
W 18x158	W 460x235	500	287	20.6	36.6	laser-fused or SAW:
W 18x143	W 460x213	495	284	18.5	33.5	laser-fused or SAW:
W18x130	W460x193	490	284	17	30.5	laser-fused or SAW:
W18x119	W460x177	483	287	16.6	26.9	laser-fused or SAW:
W18x106	W460x158	475	284	15	23.9	laser-fused or SAW:
W18x97	W460x144	472	282	13.6	22.1	laser-fused or SAW:
W18x86	W460x128	467	282	12.2	19.6	laser-fused or SAW:
W18x76	W460x113	462	279	10.8	17.3	laser-fused or SAW:
W18x71	W460x106	470	194	12.6	20.6	laser-fused or SAW:
W18x65	W460x97	467	193	11.4	19.1	laser-fused or SAW:
W18x60	W460x89	462	192	10.5	17.7	laser-fused or SAW:
W18x55	W460x82	460	191	9.91	16	laser-fused or SAW:
W18x50	W460x74	457	191	9.02	14.5	laser-fused or SAW:
W18x46	W460x68	460	154	9.14	15.4	laser-fused or SAW:
W18x40	W460x60	455	153	8	13.3	laser-fused or SAW:
W18x35	W460x52	450	152	7.62	10.8	laser-fused or SAW:
W 21x182	W 530x272	577	318	21.1	37.6	laser-fused or SAW:
W 21x166	W 530x248	572	315	19.1	34.5	laser-fused or SAW:
W21x147	W530x219	561	318	18.3	29.2	laser-fused or SAW:
W21x132	W530x196	554	315	16.5	26.4	laser-fused or SAW:
W21x122	W530x182	551	315	15.2	24.4	laser-fused or SAW:
W21x111	W530x165	546	312	14	22.2	laser-fused or SAW:
W21x101	W530x150	544	312	12.7	20.3	laser-fused or SAW:
W21x93	W530x138	549	214	14.7	23.6	laser-fused or SAW:
W21x83	W530x123	544	212	13.1	21.2	laser-fused or SAW:
W21x73	W530x109	538	211	11.6	18.8	laser-fused or SAW:
W21x68	W530x101	536	210	10.9	17.4	laser-fused or SAW:
W21x62	W530x92	533	209	10.2	15.6	laser-fused or SAW:
W21x55	W530x82	528	209	9.53	13.3	laser-fused or SAW:
W21x48	W530x72	523	207	8.89	10.9	laser-fused or SAW:
W21x57	W530x85	536	167	10.3	16.5	laser-fused or SAW:
W21x50	W530x74	528	166	9.65	13.6	laser-fused or SAW:
W21x44	W530x66	526	165	8.89	11.4	laser-fused or SAW:
W 24x207	W 610x307	653	330	22.1	39.9	laser-fused or SAW:
W 24x192	W 610x285	648	330	20.6	37.1	laser-fused or SAW:
W 24x176	W 610x262	640	328	19.1	34	laser-fused or SAW:
W24x162	W610x241	635	330	17.9	31	laser-fused or SAW:
W24x146	W610x217	627	328	16.5	27.7	laser-fused or SAW:
W24x131	W610x195	622	328	15.4	24.4	laser-fused or SAW:
W24x117	W610x174	617	325	14	21.6	laser-fused or SAW:
W24x104	W610x155	612	325	12.7	19.1	laser-fused or SAW:
W24x103	W610x153	622	229	14	24.9	laser-fused or SAW:
W24x94	W610x140	617	230	13.1	22.2	laser-fused or SAW:
W24x84	W610x125	612	229	11.9	19.6	laser-fused or SAW:
W24x76	W610x113	607	228	11.2	17.3	laser-fused or SAW:
W24x68	W610x101	602	228	10.5	14.9	laser-fused or SAW:
W24x62	W610x92	602	179	10.9	15	laser-fused or SAW:
W24x55	W610x82	599	178	10	12.8	laser-fused or SAW:
W27x129	W690x192	701	254	15.5	27.9	laser-fused or SAW:
W27x114	W690x170	693	257	14.5	23.6	laser-fused or SAW:
W27x102	W690x152	688	254	13.1	21.1	laser-fused or SAW:
W27x94	W690x140	683	254	12.4	18.9	laser-fused or SAW:
W27x84	W690x125	678	254	11.7	16.3	laser-fused or SAW:
