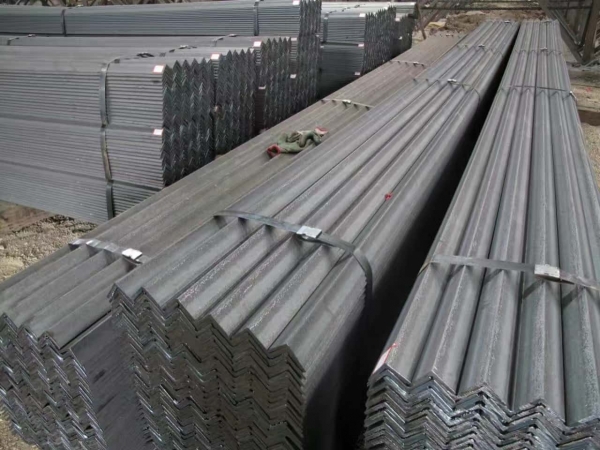

Mild Steel Angle Bar
Mild steel angle is often abbreviated to MS angle which is divided into two categories MS equal steel angle and MS unequal steel angle, Mild steel angle bar was known as mild steel angle iron, mild steel angle bar, carbon steel angle bar, and black steel angle, which has good malleable and ductile and price, so often was often be used to construct structural steel, we can offer the size range of MS angle as below, available steel grade:Q235B, Q345B, SS400, A36, A572 Gr50,
If you do not find the specification you need in the following table, contact our sales to customize the specification to meet your project.
|
Equal steel angle |
|||
|
Dimension |
Weight |
Dimension |
Weight |
|

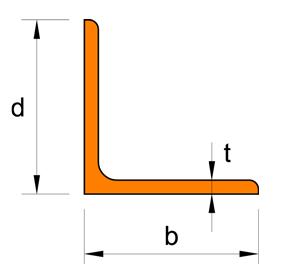

dXbXt |
(Kg/m) |
dXbXt |
(Kg/m) |
|
(mm) |
(mm) |
||
|
20*20*3 |
0.885 |
80*80*6 |
7.32 |
|
25*25*3 |
1.12 |
80*80*7 |
8.48 |
|
30*30*3 |
1.36 |
80*80*8 |
9.55 |
|
30*30*4 |
1.78 |
90*90*6 |
8.25 |
|
30*30*5 |
2.16 |
90*90*7 |
9.59 |
|
38*38*3 |
1.72 |
90*90*8 |
10.9 |
|
38*38*4 |
2.26 |
90*90*9 |
12.2 |
|
40*40*3 |
1.83 |
90*90*10 |
13.3 |
|
40*40*4 |
2.41 |
100*100*6 |
9.22 |
|
40*40*5 |
2.95 |
100*100*7 |
10.7 |
|
50*50*3 |
2.33 |
100*100*8 |
12.1 |
|
50*50*4 |
3.06 |
100*100*10 |
14.9 |
|
50*50*5 |
3.77 |
120*120*8 |
14.7 |
|
50*50*6 |
4.43 |
120*120*10 |
18.2 |
|
60*60*5 |
4.55 |
120*120*12 |
21.5 |
|
60*60*6 |
5.41 |
130*130*9 |
17.9 |
|
65*65*5 |
5 |
130*130*10 |
19.7 |
|
65*65*6 |
5.91 |
130*130*12 |
23.4 |
|
65*65*8 |
7.66 |
150*150*10 |
22.9 |
|
70*70*5 |
5.37 |
150*150*12 |
27.3 |
|
70*70*6 |
6.38 |
150*150*15 |
33.6 |
|
70*70*7 |
7.35 |
200*200*15 |
45.3 |
|
75*75*5 |
5.76 |
200*200*20 |
59.7 |
|
75*75*6 |
6.85 |
200*200*24 |
71.1 |
|
75*75*7 |
7.94 |
250*250*25 |
93.7 |
|
75*75*8 |
8.92 |
250*250*28 |
104 |
|
75*75*9 |
9.96 |
250*250*35 |
128 |
|
Unequal steel angle |
|||
|
Dimension |
Weight |
Dimension |
Weight |
|
dXbXt |
(Kg/m) |
dXbXt |
(Kg/m) |
|
(mm) |
(mm) |
||
|
25x16x3 |
0.912 |
100x63x8 |
9.878 |
|
32x20x3 |
1.171 |
100x63x10 |
12.142 |
|
32x20x4 |
1.522 |
100x80x6 |
8.35 |
|
40x25x3 |
1.484 |
100x80x7 |
9.656 |
|
40x25x4 |
1.936 |
100x80x8 |
10.946 |
|
45x28x3 |
1.687 |
100x80x10 |
13.476 |
|
45x28x4 |
2.203 |
110x70x6 |
8.35 |
|
50x32x3 |
1.908 |
110x70x7 |
9.656 |
|
50x32x4 |
2.494 |
110x70x8 |
10.946 |
|
56x36x3 |
2.153 |
110x70x10 |
13.476 |
|
56x36x4 |
2.818 |
125x80x7 |
11.066 |
|
56x36x5 |
3.466 |
125x80x8 |
12.551 |
|
63x40x4 |
3.185 |
125x80x10 |
15.474 |
|
63x40x5 |
3.92 |
125x80x12 |
18.33 |
|
63x40x6 |
4.638 |
140x90x8 |
14.1 |
|
70x45x5 |
4.403 |
140x90x10 |
17.475 |
|
70x45x6 |
5.218 |
140x90x12 |
20.724 |
|
70x45x7 |
6.011 |
140x90x14 |
23.908 |
|
75x50x5 |
4.808 |
160x100x10 |
19.872 |
|
75x50x6 |
5.699 |
160x100x14 |
27.274 |
|
75x50x8 |
7.431 |
160x100x16 |
30.853 |
|
75x50x10 |
9.098 |
180x110x10 |
22.273 |
|
80x50x5 |
5.005 |
180x110x12 |
26.464 |
|
80x50x6 |
5.935 |
180x110x14 |
30.589 |
|
80x50x7 |
6.848 |
180x110x16 |
34.649 |
|
80x50x8 |
7.745 |
200x125x12 |
29.761 |
|
90x56x5 |
5.661 |
200x125x14 |
34.436 |
|
90x56x6 |
6.717 |
200x125x16 |
39.045 |
|
90x56x8 |
8.779 |
200x125x18 |
43.588 |
|
100x63x7 |
8.722 |
||
