American wide flange beams Manufacturers Suppliers Stockist in China

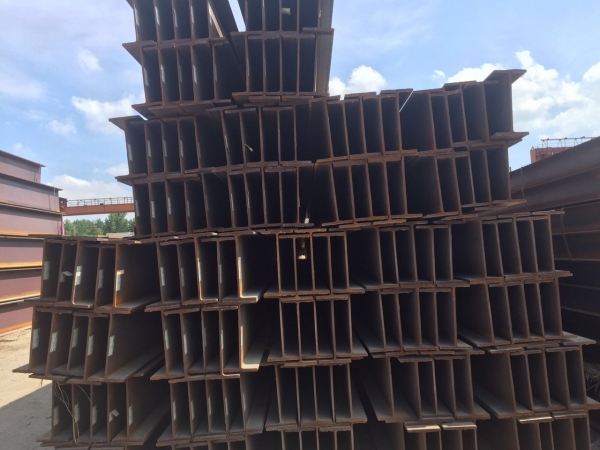

AMERICAN WIDE FLANGE BEAMS - W SHAPE BEAM

American hot rolled steel wide flange beam often was abbreviated to HR wide flange beam,“HR “WF" beam or “HR” “W” beam, as the dimensions of flange and web are change big or small with American wide beam specification, so they was also known as steel “H” beam and steel “I” beam, our factory manufacture American wide flange beam according to the ASTM standard which is ASTM A992 ( remark: ASTM A572 has been replaced by ASTM A992) and ASTM A36/A36M-2008 to finish, for the size tolerance of American wide flange beam , we are as per ASTM_A6-11 standard to manufacture, so the quality of the American wide beam of our factory manufacture is good.so far, we have two steel grade can be available which is ASTM A36 and ASTM A572 grade 50 or ASTM A992 grade 50. For the length of American wide beam, in general, the length is 12 meters, but our factory can be customized your length as your demand to meet your steel project, such as 3, 6, 9,12 15 meters. It is a kind of American structure steel section, which was often widely used in all kinds of civil and industrial building structure steel; a variety of large span industrial workshop and modern high-rise buildings, especially the frequent seismic activity area and high temperature working conditions of the industrial building; large span bridge, heavy equipment; ship skeleton and mine support. Our factory also can provide hot dip galvanized wide flange beam, hot dip galvanized standard as below for your reference.

Hot Dip Galvanizing Standard
Country	Standard code	Standard Name
China	GB/T13912-2002	Metallic coatings-Hot dip galvanized coatings on fabricated iron and steel products specification
	GB/T3091-2001	welded steel pipe for low pressure liquid delivery
	GB2694-2003	Transmission Line Tower -Technical Requirements for Manufacturing
	JT/281-1995	Corrugated sheet steel beams for expressway guardrail
Internation	ISO1461(1999)	Hot dip galvanized coatings on fabricated iron and steel articles— Specifications and test methods
Japanese	JISH8641-1999	Hot dip galvanized coatings on fabricated iron and steel products articles specification and test methods
American	ASTM A123/A 123M-02	Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products

Feature:

★Meet American standard: ASTM A6-11

★Meet American standard steel grade: ASTM A36, ASTM A572 GRADE 50 /ASTM A992 GRADE 50 for steel wide flange beam

★The length can be customized.

★Provide Hot dip galvanized serve

We supply specification of American wide flange beam as below chart, if you want to know our price for American wide flange beam, contact our sales by email please and tell the length, steel grade, quantity, surface for getting exact and quickly offer.

the drawing for American Wide Flange Beams W beam

Imperial	Weight	Imperial	Metric	Weight	Depth of Section	Width of Section	Web Thickness	Flange Thickness	R
Inxlb/ft	lb/ft	In x In x lb/ft	mm x mm x kg/m	KG/M	H	B	TW	TF	mm
Inxlb/ft	lb/ft	In x In x lb/ft	mm x mm x kg/m	KG/M	(mm)	(mm)	(mm)	(mm)	mm
W 4x13	13	W 4 x 4 x 13	W 100 x 100 x 19.3	19.3	106	103	7.1	9	6
W 5x16	16	W 5 x 5 x 16	W 130 x 130 x 23.8	23.8	127	127	6.1	9	8
W 5x19	19	W 5 x 5 x 19	W 130 x 130 x 28.1	28.1	131	128	6.9	11	8
W 6x9	9	W 6 x 4 x 9	W 150 x 100 x 13.5	13.5	150	100	4.3	6	6
W 6x12	12	W 6 x 4 x 12	W 150 x 100 x 18.0	18	153	102	5.8	7	6
W 6x16	16	W 6 x 4 x 16	W 150 x 100 x 24.0	24	160	102	6.6	10	6
W 6x15	15	W 6 x 6 x 15	W 150 x 150 x 22.5	22.5	152	152	5.8	7	6
W 6x20	20	W 6 x 6 x 20	W 150 x 150 x 29.8	29.8	157	153	6.6	9	6
W 6x25	25	W 6 x 6 x 25	W 150 x 150 x 37.1	37.1	162	154	8.1	12	6
W 8x10	10	W 8 x 4 x 10	W 200 x 100 x 15.0	15	200	100	4.3	5	8
W 8x13	13	W 8 x 4 x 13	W 200 x 100 x 19.3	19.3	203	102	5.8	7	8
W 8x15	15	W 8 x 4 x 15	W 200 x 100 x 22.5	22.5	206	102	6.2	8	8
W 8x18	18	W 8 x 5.25 x 18	W 200 x 135 x 26.6	26.6	207	133	5.8	8	8
W 8x21	21	W 8 x 5.25 x 21	W 200 x 135 x 31.3	31.3	210	134	6.4	10	8
W 8x24	24	W 8 x 6.5 x 24	W 200 x 165 x 35.9	35.9	201	165	6.2	10	10
W 8x28	28	W 8 x 6.5 x 28	W 200 x 165 x 41.7	41.7	205	166	7.2	12	10
W 8x31	31	W 8 x 8 x 31	W 200 x 200 x 46.1	46.1	203	203	7.2	11	10
W 8x35	35	W 8 x 8 x 35	W 200 x 200 x 52	52	206	204	7.9	13	10
W 8x40	40	W 8 x 8 x 40	W 200 x 200 x 59	59	210	205	9.1	14	10
W 8x48	48	W 8 x 8 x 48	W 200 x 200 x 71	71	216	206	10.2	17	10
W 8x58	58	W 8 x 8 x 58	W 200 x 200 x 86	86	222	209	13.0	21	10
W 8x67	67	W 8 x 8 x 67	W 200 x 200 x 100	100	229	210	14.5	24	10
W 10x12	12	W 10 x 4 x 12	W 250 x 100 x 17.9	17.9	251	101	4.8	5	8
W 10x15	15	W 10 x 4 x 15	W 250 x 100 x 22.3	22.3	254	102	5.8	7	8
W 10x17	17	W 10 x 4 x 17	W 250 x 100 x 25.3	25.3	257	102	6.1	8	8
W 10x19	19	W 10 x 4 x 19	W 250 x 100 x 28.4	28.4	260	102	6.4	10	8
W 10x22	22	W 10 x 5.75 x 22	W 250 x 145 x 32.7	32.7	258	146	6.1	9	8
W 10x26	26	W 10 x 5.75 x 26	W 250 x 145 x 38.5	38.5	262	147	6.6	11	8
W 10x30	30	W 10 x 5.75 x 30	W 250 x 145 x 44.8	44.8	266	148	7.6	13	8
W 10x33	33	W 10 x 8 x 33	W 250 x 200 x 49.1	49.1	247	202	7.4	11	13
W 10x39	39	W 10 x 8 x 39	W 250 x 200 x 58	58	252	203	8.0	14	13
W 10x45	45	W 10 x 8 x 45	W 250 x 200 x 67	67	257	204	8.9	16	13
W 10x49	49	W 10 x 10 x 49	W 250 x 250 x 73	73	253	254	8.6	14	13
W 10x54	54	W 10 x 10 x 54	W 250 x 250 x 80	80	256	255	9.4	16	13
W 10x60	60	W 10 x 10 x 60	W 250 x 250 x 89	89	260	256	10.7	17	13
W 10x68	68	W 10 x 10 x 68	W 250 x 250 x 101	101	264	257	11.9	20	13
W 10x77	77	W 10 x 10 x 77	W 250 x 250 x 115	115	269	259	13.5	22	13
W 10x88	88	W 10 x 10 x 88	W 250 x 250 x 131	131	275	261	15.4	25	13
W 10x100	100	W 10 x 10 x 100	W 250 x 250 x 149	149	282	263	17.3	28	13
W 10x112	112	W 10 x 10 x 112	W 250 x 250 x 167	167	289	265	19.2	32	13
W 12x14	14	W 12 x 4 x 14	W 310 x 100 x 21.0	21	303	101	5.1	6	8
W 12x16	16	W 12 x 4 x 16	W 310 x 100 x 23.8	23.8	305	101	5.6	7	8
W 12x19	19	W 12 x 4 x 19	W 310 x 100 x 28.3	28.3	309	102	6.0	9	8
W 12x22	22	W 12 x 4 x 22	W 310 x 100 x 32.7	32.7	313	102	6.6	11	8
W 12x26	26	W 12 x 6.5 x 26	W 310 x 165 x 38.7	38.7	310	165	5.8	10	8
W 12x30	30	W 12 x 6.5 x 30	W 310 x 165 x 44.5	44.5	313	166	6.6	11	8
W 12x35	35	W 12 x 6.5 x 35	W 310 x 165 x 52	52	317	167	7.6	13	8
W 12x40	40	W 12 x 8 x 40	W 310 x 200 x 60	60	303	203	7.5	13	15
W 12x45	45	W 12 x 8 x 45	W 310 x 200 x 67	67	306	204	8.5	15	15
W 12x50	50	W 12 x 8 x 50	W 310 x 200 x 74	74	310	205	9.4	16	15
W 12x53	53	W 12 x 10 x 53	W 310 x 250 x 79	79	306	254	8.8	15	15
W 12x58	58	W 12 x 10 x 58	W 310 x 250 x 86	86	310	254	9.1	16	15
W 12x65	65	W 12 x 12 x 65	W 310 x 310 x 97/´	97	308	305	9.9	15	15
W 12x72	72	W 12 x 12 x 72	W 310 x 310 x 107	107	311	306	10.9	17	15
W 12x79	79	W 12 x 12 x 79	W 310 x 310 x 117	117	314	307	11.9	19	15
W 12x87	87	W 12 x 12 x 87	W 310 x 310 x 129	129	318	308	13.1	21	15
W 12x96	96	W 12 x 12 x 96	W 310 x 310 x 143	143	323	309	14.0	23	15
W 12x106	106	W 12 x 12 x 106	W 310 x 310 x 158	158	327	310	15.5	25	15
W 12x120	120	W 12 x 12 x 120	W 310 x 310 x 179	179	333	313	18.0	28	15
W 12x136	136	W 12 x 12 x 136	W 310 x 310 x 202	202	341	315	20.1	32	15
W 12x152	152	W 12 x 12 x 152	W 310 x 310 x 226	226	348	317	22.1	36	15
W 12x170	170	W 12 x 12 x 170	W 310 x 310 x 253	253	356	319	24.4	40	15
W 14x22	22	W 14 x 5 x 22	W 360 x 130 x 32.9	32.9	349	127	5.8	9	10
W 14x26	26	W 14 x 5 x 26	W 360 x 130 x 39.0	39	353	128	6.5	11	10
W 14x30	30	W 14 x 6.75 x 30	W 360 x 170 x 44	44.6	352	171	6.9	10	10
W 14x34	34	W 14 x 6.75 x 34	W 360 x 170 x 51	51	355	171	7.2	12	10
W 14x38	38	W 14 x 6.75 x 38	W 360 x 170 x 57.8	58	358	172	7.9	13	10
W 14x43	43	W 14 x 8 x 43	W 360 x 200 x 64	64	347	203	7.7	14	15
W 14x48	48	W 14 x 8 x 48	W 360 x 200 x 72	72	350	204	8.6	15	15
W 14x53	53	W 14 x 8 x 53	W 360 x 200 x 79	79	354	205	9.4	17	15
W 14x61	61	W 14 x 10 x 61	W 360 x 250 x 91	91	353	254	9.5	16	15
W 14x68	68	W 14 x 10 x 68	W 360 x 250 x 101	101	357	255	10.5	18	15
W 14x74	74	W 14 x 10 x 74	W 360 x 250 x 110	110	360	256	11.4	20	15
W 14x82	82	W 14 x 10 x 82	W 360 x 250 x 122	122	363	257	13.0	22	15
W 14x90	90	W 14 x 14.5 x 90	W 360 x 370 x 134	134	356	369	11.2	18	15
W 14x99	99	W 14 x 14.5 x 99	W 360 x 370 x 147	147	360	370	12.3	20	15
W 14x109	109	W 14 x 14.5 x 109	W 360 x 370 x 162	162	364	371	13.3	22	15
W 14x120	120	W 14 x 14.5 x 120	W 360 x 370 x 179	179	368	373	15.0	24	15
W 14x132	132	W 14 x 14.5 x 132	W 360 x 370 x 196	196	372	374	16.4	26	15
W 14x145	145	W 14 x 16 x 145	W 360 x 410 x 216	216	375	394	17.3	28	15
W 14x159	159	W 14 x 16 x 159	W 360 x 410 x 237	237	380	395	18.9	30	15
W 14x176	176	W 14 x 16 x 176	W 360 x 410 x 262	262	387	398	21.1	33	15
W 14x193	193	W 14 x 16 x 193	W 360 x 410 x 287	287	393	399	22.6	37	15
W 14x211	211	W 14 x 16 x 211	W 360 x 410 x 314	314	399	401	24.9	40	15
W 16x26	26	W 16 x 5.5 x 26	W 410 x 140 x 38.8	38.8	399	140	6.4	9	10
W 16x31	31	W 16 x 5.5 x 31	W 410 x 140 x 46.1	46.1	403	140	7.0	11	10
W 16x36	36	W 16 x 7 x 36	W 410 x 180 x 53	53	403	177	7.5	11	10
W 16x40	40	W 16 x 7 x 40	W 410 x 180 x 60	60	407	178	7.7	13	10
W 16x45	45	W 16 x 7 x 45	W 410 x 180 x 67	67	410	179	8.8	14	10
W 16x50	50	W 16 x 7 x 50	W 410 x 180 x 75	75	413	180	9.7	16	10
W 16x57	57	W 16 x 7 x 57	W 410 x 180 x 85	85	417	181	10.9	18	10
W 16x67	67	W 16 x 10.25 x 67	W 410 x 260 x 100	100	415	260	10.0	17	10
W 16x77	77	W 16 x 10.25 x 77	W 410 x 260 x 114	114	420	261	11.6	19	10
W 16x89	89	W 16 x 10.25 x 89	W 410 x 260 x 132	132	425	263	13.3	22	10
W 16x100	100	W 16 x 10.25 x 100	W 410 x 260 x 149	149	431	265	14.9	25	10
W 18x35	35	W 18 x 6 x 35	W 460 x 150 x 52	52	450	152	7.6	11	10
W 18x40	40	W 18 x 6 x 40	W 460 x 150 x 60	60	455	153	8.0	13	10
W 18x46	46	W 18 x 6 x 46	W 460 x 150 x 68	68	459	154	9.1	15	10
W 18x50	50	W 18 x 7.5 x 50	W 460 x 190 x 74	74	457	190	9.0	15	10
W 18x55	55	W 18 x 7.5 x 55	W 460 x 190 x 82	82	460	191	9.9	16	10
W 18x60	60	W 18 x 7.5 x 60	W 460 x 190 x 89	89	463	192	10.5	18	10
W 18x65	65	W 18 x 7.5 x 65	W 460 x 190 x 97	97	466	193	11.4	19	10
W 18x71	71	W 18 x 7.5 x 71	W 460 x 190 x 106	106	469	194	12.6	21	10
W 18x76	76	W 18 x 11 x 76	W 460 x 280 x 113	113	463	280	10.8	17	10
W 18x86	86	W 18 x 11 x 86	W 460 x 280 x 128	128	467	282	12.2	20	10
W 18x97	97	W 18 x 11 x 97	W 460 x 280 x 144	144	472	283	13.6	22	10
W 18x106	106	W 18 x 11 x 106	W 460 x 280 x 158	158	476	284	15.0	24	10
W 18x119	119	W 18 x 11 x 119	W 460 x 280 x 177	177	482	286	16.6	27	10
W 18x130	130	W 18 x 11 x 130	W 460 x 280 x 193	193	489	283	17.0	31	10
W 18x143	143	W 18 x 11 x 143	W 460 x 280 x 213	213	495	285	18.5	34	10
W 18x158	158	W 18 x 11 x 158	W 460 x 280 x 235	235	501	287	20.6	37	10
W 18x175	175	W 18 x 11 x 175	W 460 x 280 x 260	260	509	289	22.6	40	10
W 21x44	44	W 21 x 6.5 x 44	W 530 x 165 x 66	66	525	165	8.9	11	13
W 21x50	50	W 21 x 6.5 x 50	W 530 x 165 x 74	74	529	166	9.7	14	13
W 21x57	57	W 21 x 6.5 x 57	W 530 x 165 x 85	85	535	166	10.3	17	13
W 21x62	62	W 21 x 8.25 x 62	W 530 x 210 x 92	92	533	209	10.2	16	13
W 21x68	68	W 21 x 8.25 x 68	W 530 x 210 x 101	101	537	210	10.9	17	13
W 21x73	73	W 21 x 8.25 x 73	W 530 x 210 x 109	109	539	211	11.6	19	13
W 21x83	83	W 21 x 8.25 x 83	W 530 x 210 x 123	123	544	212	13.1	21	13
W 21x93	93	W 21 x 8.25 x 93	W 530 x 210 x 138	138	549	214	14.7	24	13
W 21x101	101	W 21 x 12.5 x 101	W 530 x 315 x 150	150	543	312	12.7	20	13
W 21x111	111	W 21 x 12.5 x 111	W 530 x 315 x 165	165	546	313	14.0	22	13
W 21x122	122	W 21 x 12.5 x 122	W 530 x 315 x 182	182	551	315	15.2	24	13
W 21x132	132	W 21 x 12.5 x 132	W 530 x 315 x 196	196	554	316	16.5	26	13
W 21x147	147	W 21 x 12.5 x 147	W 530 x 315 x 219	219	560	318	18.3	29	13
W 21x166	166	W 21 x 12.5 x 166	W 530 x 315 x 248	248	571	315	19.0	35	13
W 21x182	182	W 21 x 12.5 x 182	W 530 x 315 x 272	272	577	318	21.1	38	13
W 21x201	201	W 21 x 12.5 x 201	W 530 x 315 x 300	300	585	319	23.1	41	13
W 24x55	55	W 24 x 7 x 55	W 610 x 180 x 82	82	599	178	10.0	13	13
W 24x62	62	W 24 x 7 x 62	W 610 x 180 x 92	92	603	179	10.9	15	13
W 24x68	68	W 24 x 9 x 68	W 610 x 230 x 101	101	603	228	10.5	15	13
W 24x76	76	W 24 x 9 x 76	W 610 x 230 x 113	113	608	228	11.2	17	13
W 24x84	84	W 24 x 9 x 84	W 610 x 230 x 125	125	612	229	11.9	20	13
W 24x94	94	W 24 x 9 x 94	W 610 x 230 x 140	140	617	230	13.1	22	13
W 24x103	103	W 24 x 9 x 103	W 610 x 230 x 153	153	623	229	14.0	25	13
W 24x104	104	W 24 x 12.75 x 104	W 610 x 325 x 155´/	155	611	324	12.7	19	13
W 24x117	117	W 24 x 12.75 x 117	W 610 x 325 x 174	174	616	325	14.0	22	13
W 24x131	131	W 24 x 12.75 x 131	W 610 x 325 x 195	195	622	327	15.4	24	13
W 24x146	146	W 24 x 12.75 x 146	W 610 x 325 x 217	217	628	328	16.5	28	13
W 24x162	162	W 24 x 12.75 x 162	W 610 x 325 x 241	241	635	329	17.1	31	13
W 24x176	176	W 24 x 12.75 x 176	W 610 x 325 x 262	262	641	327	19.0	34	13
W 24x192	192	W 24 x 12.75 x 192	W 610 x 325 x 285	285	647	329	20.6	37	13
W 27x84	84	W 27 x 10 x 84	W 690 x 250 x 125	125	678	253	11.7	16	15
W 27x94	94	W 27 x 10 x 94	W 690 x 250 x 140	140	684	254	12.4	19	15
W 27x102	102	W 27 x 10 x 102	W 690 x 250 x 152	152	688	254	13.1	21	15
W 27x114	114	W 27 x 10 x 114	W 690 x 250 x 170	170	693	256	14.5	24	15
W 27x129	129	W 27 x 10 x 129	W 690 x 250 x 192	192	702	254	15.5	28	15
W 30x99	99	W 30 x 10.5 x 99	W 760 x 265 x 147	147	753	265	13.2	17	17
W 30x108	108	W 30 x 10.5 x 108	W 760 x 265 x 161	161	758	266	13.8	19	17
W 30x116	116	W 30 x 10.5 x 116	W 760 x 265 x 173	173	762	267	14.4	22	17
W 30x124	124	W 30 x 10.5 x 124	W 760 x 265 x 185	185	766	267	14.9	24	17
W 30x132	132	W 30 x 10.5 x 132	W 760 x 265 x 196	196	770	268	15.6	25	17
W 30x148	148	W 30 x 10.5 x 148	W 760 x 265 x 220	220	779	266	16.5	30	17
W 33x118	118	W 33 x 11.5 x 118	W 840 x 295 x 176	176	835	292	14.0	19	18
W 33x130	130	W 33 x 11.5 x 130	W 840 x 295 x 193	193	840	292	14.7	22	18
W 33x141	141	W 33 x 11.5 x 141	W 840 x 295 x 210	210	846	293	15.4	24	18
W 33x152	152	W 33 x 11.5 x 152	W 840 x 295 x 226	226	851	294	16.1	27	18
W 33x169	169	W 33 x 11.5 x 169	W 840 x 295 x 251	251	859	292	17.0	31	18
W 36x135	135	W 36 x 12 x 135	W 920 x 310 x 201	201	903	304	15.2	20	19
W 36x150	150	W 36 x 12 x 150	W 920 x 310 x 223	223	911	304	15.9	24	19
W 36x160	160	W 36 x 12 x 160	W 920 x 310 x 238	238	915	305	16.5	26	19
W 36x170	170	W 36 x 12 x 170	W 920 x 310 x 253	253	919	306	17.3	28	19
W 36x182	182	W 36 x 12 x 182	W 920 x 310 x 271	271	923	307	18.4	30	19
W 36x194	194	W 36 x 12 x 194	W 920 x 310 x 289	289	927	308	19.4	32	19
W 36x210	210	W 36 x 12 x 210	W 920 x 310 x 313	313	932	309	21.1	35	19
W 40x149	149	W 40 x 12 x 149	W 1000 x 300 x 222	222	970	300	16.0	21	30
W 40x167	167	W 40 x 12 x 167	W 1000 x 300 x 249	249	980	300	16.5	26	30
W 40x183	183	W 40 x 12 x 183	W 1000 x 300 x 272	272	990	300	16.5	31	30
W 40x211	211	W 40 x 12 x 211	W 1000 x 300 x 314	314	1000	300	19.1	36	30
W 40x235	235	W 40 x 12 x 235	W 1000 x 300 x 350	350	1008	302	21.1	40	30

American Wide Flange Beams, W beam
