AUSTRALIAN STANDARD STEEL UNIVERSAL BEAMS - UB

Australian/New Zealand Standard Universal Beams

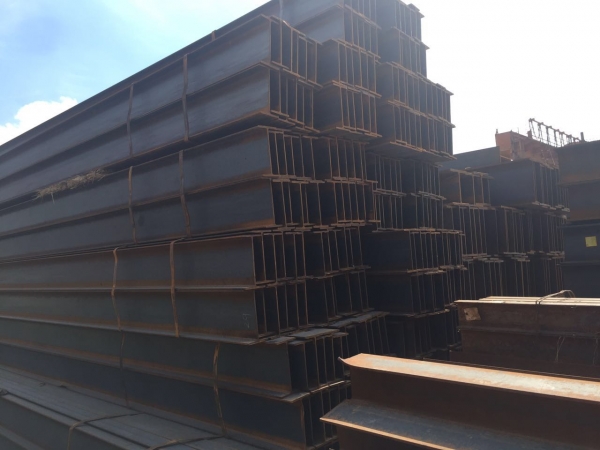

Steel universal beams (steel "UB") was known as universal “I” beam, steel “I” beam and "UB" steel section which was manufactured according to Australian/New Zealand Standard. Structural steel Part 1: Hot-rolled bars and sections (AS-NZS 3679.1-2010) to finish for meet requirement of Austrian countries. Universal beam has narrow flange and wide web, so often used as beam in the structural steel, In general, the length of universal beam is 12 meters, but we can cut length for meet your project and offer longer universal beam such as 14 meters, 16 meters, 18 meters if you need, also we can offer hot dipped galvanized universal beam, available steel grade: 300 plus, Q235B, Q345B

We are manufacturers, suppliers, distributors and exporters of mild structural steel universal beam, size range from 150 UB 14 to 610 UB 125, welcome to purchase steel universal beam from OneSteel Metals.

the drawing for Australian and New Zealand Standard universal beam

Size	Weight	d	b	tf	tw
Size	kg/m	(mm)	(mm)	(mm)	(mm)
150 UB 14	14	150	75	7	5
150 UB 18	18	155	75	9.5	6
180 UB 16	16.1	173	90	7	4.5
180UB 18	18.1	175	90	8	5
200 UB 18	18.2	198	99	7	4.5
200 UB 22	22.3	201.6	133	7	5
250 UB 25	25.7	248	124	8	5
200UB 29	29.8	207	134	9.6	6.3
250 UB 31	31.4	251.3	146	8.6	6.1
250 UB 37	37.3	256.2	146	10.9	6.4
310 UB 32	32	298	149	8	5.5
310 UB 40	40.4	304	165	10.2	6.1
310 UB 46	46.2	307.2	166	11.8	6.7
360 UB 44	44.7	352	171	9.7	6.9
360 UB 50	50.7	356	171	11.5	7.3
360 UB 56	56.7	359	s172	13	8
410 UB 53	53.7	403	178	10.9	7.6
410 UB 59	59.7	406	178	12.8	7.8
460 UB 67	67.1	454	190	12.7	8.5
460 UB 74	74.6	457	190	14.5	9.1
460 UB 82	82.1	460	191	16	9.9
530 UB 82	82	528	209	13.2	9.6
530 UB 92	92.4	533	209	15.6	10.2
610 UB 101	101	602	228	14.8	10.6
610 UB 113	113	607	228	17.3	11.2
610 UB 125	125	612	229	19.6	11.9

The picture for hot dip galvanized universal beams.

hot dip galvanized universal beams

Australian/New Zealand Standard Universal Beams
