UPE - Parallel Flanges Steel Channels

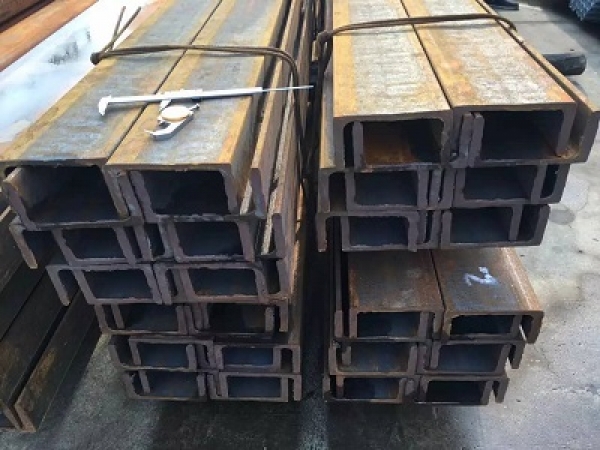

UPE channel is one of the European standard structurals steel channel section which with parallel flange, UPE channel was known as steel U channel, U channel steel and Upe profile and parallel flange channel which was manufactured by European quality standard EN 10025 and European standard size tolerance EN 10034 to finish, which is often used to construct structural steel, We offer hot rolled UPE steel channel size range from UPE 80 to UPE 400, the available steel grade: S235JR, S235JO, S235J2, S275JR, S275JO, S275J2, S355JO, S355J2, S355JR, the available length for UPE steel channel: 6 meters-16 meters or we can cut size to meet your project, we can offer also galvanized UPE channel if you need.
|
Specification |
Weight |
H |
B |
TW |
TF |
d |
R |
|
Kg/m |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
UPE-80 |
7.9 |
80 |
50 |
4 |
7 |
46 |
10 |
|
UPE-100 |
9.82 |
100 |
55 |
4.5 |
7.5 |
65 |
10 |
|
UPE-120 |
12.1 |
120 |
60 |
5 |
8 |
80 |
12 |
|
UPE-140 |
14.5 |
140 |
65 |
5 |
9 |
98 |
12 |
|
UPE-160 |
17 |
160 |
70 |
5.5 |
9.5 |
117 |
12 |
|
UPE-180 |
19.7 |
180 |
75 |
5.5 |
10.5 |
135 |
12 |
|
UPE-200 |
22.8 |
200 |
80 |
6 |
11 |
152 |
13 |
|
UPE-220 |
26.6 |
220 |
85 |
6.5 |
12 |
170 |
13 |
|
UPE-240 |
30.2 |
240 |
90 |
7 |
12.5 |
185 |
15 |
|
UPE-270 |
35.2 |
270 |
95 |
7.5 |
13.3 |
213 |
15 |
|
UPE-300 |
44.4 |
300 |
100 |
9.5 |
15 |
240 |
15 |
|
UPE-330 |
53.2 |
330 |
105 |
11 |
16 |
262 |
18 |
|
UPE-360 |
61.2 |
360 |
110 |
12 |
17 |
290 |
18 |
|
UPE-400 |
72.2 |
400 |
115 |
13.5 |
18 |
328 |
18 |
